ALB-MT Series – GRAND+ LiFePO4 BATTERY BCI GC2 SIZE BATTERY

RELIABLE AND SAFE
LiFePO4 is the ultimate safe, maintenance-free.
UL94 V0 flame retardant case and cover, and IP 67 rated.

RUNS LONGER
2X the high-current runtime compares to a lead-acid battery
Up to 100% usable capacity, the ability to parallel more capacity

CHARGES FASTER
Faster than new lead-acid batteries up to 5X
2X faster than 0.5C rated lithium batteries
Even charge at 1C rate anytime

LASTS ON-DUTY
Supports Partial State of Charge cycles at any time.

HIGH PEAK POWER
High 3C Surge Power, discharge current up to 2C

HIGH-EFFICIENCY
Up to 50% more energy efficient than a lead-acid battery
Up to 98% round-trip efficiency

PARALLEL ENERGY POWER
Easy to extend more capacity in parallel


MODEL DESCRIPTION

ALB-MT GRAND + Series batteries are purpose-built to replace and fit the groupings of standard BCI GC2 size batteries. MT GRAND + batteries integrate the latest high-current BMS that is not only delivering extreme peak power but also along with fast 1C continuous discharge and charge rates, furthermore, they build in a Low-temperature Charge functionality allowing for cold temperature charging to begin from -20°C / -4°F. Fulfilled the highest standard safety, performance, and transportation standard. Building BCI GC2 size battery fitted and used in golf carts, automated vehicles, utility electric vehicles, robots, and floor cleaning machines..

PRODUCT CHARACTERISTICS

Model NO.

MT200-12PGC2

MT100-24PGC2

MT30-36PGC2

MT30-48PGC2

Electrical Parameters

Nominal Capacity

200Ah

100Ah

30Ah

30Ah

Charging Voltage Range

13.8V - 14.2V

27.6V - 28.4V

41.4V - 42.6V

55.2V - 56.8V

Rated Voltage

12.8V

25.6V

38.4V

51.2V

Voltage Range

10V ~ 14.6V

20V ~2 9.2V

30V ~ 40.8V

40V ~ 58.4V

Depth of DischargeDOD

≤90%

≤90%

≤90%

≤90%

Maximum Discharge Current

150A

100A

30A

30A

Maximum Charging Current

100A

100A

30A

30A

General Parameters

Battery Type

Lithium Iron Phosphate Battery

Communication

CAN

Working Altitude

≤2000m

Working Temperature Range

Charging0℃~55℃/Discharging-20℃~60℃

Operation Humidity

5%~95%

Storage Temperature Range

≤25℃@12 months≤35℃@6 months≤45℃@3 months

Life Cycle

≥2000@25±2℃,0.5C/0.5C

Ingress Protection Rating

IP67

Dimensions [H*W*D]

276*178*312mm/10.87”*7.0”*12.28”

Net Weight

20Kg/44lb

20Kg/44lb

11.2Kg/24.7lb

14Kg/30.86lb

Terminal

BM 5/16

BM 5/16

BM 5/16

BM 5/16

Warranty

2 Years

Certification

IEC 62619/UL 1973/UL2271/UN 38.3

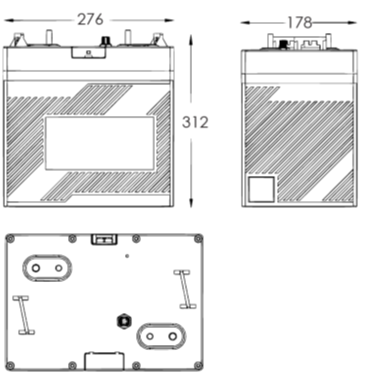

PRODUCT DRAWINGS
