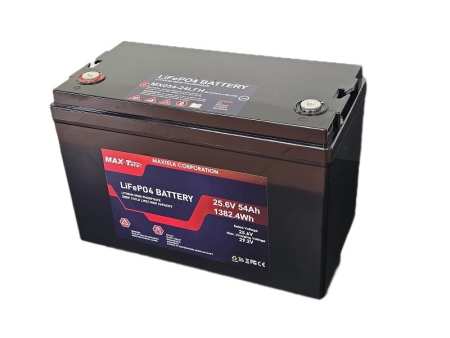

MX054-24LFH–24V54Ah LiFePO₄ Battery for Low-Power Devices & OEM Systems-Maxtela(Motive)
MX054-24LFH
ENHANCED LITHIUM BATTERY
24V54Ah LiFePO4 Battery
Maxtela HLB Lithium Battery, deep cycle,
long life cycle rechargeable battery
High-efficiency 24V 54Ah LiFePO₄ battery designed for low-motive power applications. Long cycle life, lightweight, and enhanced safety for industrial use. (Customized design is also available when you need it.)
24V 54Ah LiFePO₄ Battery for Low-Motive Power Applications
The MX054-24LFH is a 24V 54Ah LiFePO₄ battery tailored for low-motive power applications such as light-duty electric vehicles, autonomous robots, and mobile equipment. Engineered with advanced lithium iron phosphate chemistry, it offers exceptional cycle life, reliable discharge performance, and superior safety characteristics. Compact and lightweight, this battery ensures efficient energy delivery with minimal maintenance, making it ideal for manufacturers seeking a dependable power source for industrial and automation systems.
Features
-
Optimized for Low-Power Loads: Provides stable output for devices with limited power needs
-
Compact & Lightweight Design: Ideal for embedded systems and space-constrained applications
-
Integrated Smart BMS: Full protection against overcharge, over-discharge, overcurrent, and temperature extremes
-
Long Cycle Life: >4000 cycles at 80% DoD
-
Safe and Eco-Friendly Chemistry: Non-toxic, thermally stable LiFePO₄ cells
-
OEM-Ready: Private labeling and connector customization available
-
Low Self-Discharge: Reliable standby for backup and intermittent use
Specification：
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.8 V |
| Rated Capacity | 54 Ah (1393.2Wh) |
| Cell Type | LiFePO₄ |
| Cell Voltage | 3.2 V |
| Charge Voltage | ≤ 29.2 V |
| Cut-off Voltage | ≥ 21.6 V |
| Self-Discharge | ≤ 3%／月 |
| Max. Continuous Charging Current(A) |
54A |
| Max.Discharging Current (A) |
80A |
| Peak Discharge Current (A) |
180A(for 3S)(Adjustable) |
| Charge Temp | 0–45 °C (32–113 °F) |
| Discharge Temp | –20–60 °C (–4–140 °F) |
| Storage Temp | –10–40 °C (14–104 °F) |
| Dimensions | 330 × 172 × 215 mm (12.99″×6.81″×8.46″) |
| Weight | 12 kg (26.5 lbs) |
| Terminal Type | M8 |
| PCM/BMS | Yes |
Applications：
-
Low-Power Telecom Equipment
-
IoT Devices and Remote Sensors
-
Smart Home and Industrial Automation
-
Medical Monitoring Equipment
-
Portable Lighting or Monitoring Systems
-
UPS Backup for Low-Energy Loads
-
OEM Battery Packs for Custom Equipment
Looking for a compact battery solution for your low-power device?
Maxtela provides OEM-ready lithium battery packs with flexible specifications and stable supply. Contact us to learn more or request a custom quote
Choose Maxtela — your trusted partner for professional and reliable energy storage solutions.
