MX200-12LF | 12.8V 200Ah Industrial Deep Cycle LiFePO₄ Battery – Maxtela
MX200-12LF
ENHANCED LITHIUM BATTERY
12V200Ah LiFePO4 Battery
Maxtela HLB Lithium Battery, deep cycle,
long life cycle rechargeable battery
Maxtela's Enhanced Lithium Iron Phosphate (LiFePO4) Battery Series with high power energy and a long life cycle, a specific design to fit its wide range capabilities relying on the built-in BMS. Enhanced Lithium Battery Series offers excellent performance and leverages with intelligent technology, to last the protection throughout the whole use. Suitable for use in AGV, Storage energy, Telecom, Mobile motors applications, and much more. (Customized design is also available when you need it.)
12.8V200Ah LiFePO₄ Battery | High-Performance Energy Storage Solution

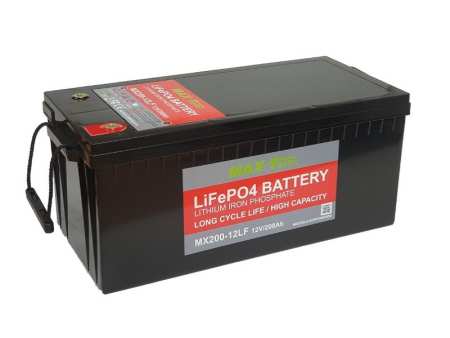

Maxtela MX200-12LF is an advanced 12.8V 200Ah LiFePO₄ battery engineered for demanding industrial energy storage applications.
It features a high discharge rate, long cycle life, and integrated intelligent Battery Management System (BMS) that ensures safe and stable operation under various conditions.
Compared to traditional lead-acid batteries, the MX200-12LF offers up to 10 times longer cycle life and over 50% weight reduction, making it ideal for retrofitting or upgrading existing systems. It delivers reliable power for automated guided vehicles (AGVs), backup power systems (UPS), telecom stations, solar and off-grid systems, marine power, and heavy-duty equipment.
Whether you are a system integrator, OEM, or commercial energy user, this industrial-grade battery brings you unmatched performance and lifecycle savings.
Features：
-
Integrated Smart BMS: Real-time protection against overcharge, over-discharge, overcurrent, short circuit, and temperature anomalies.
-
Long Cycle Life: Over 2,500 cycles at 80% DoD – up to 10x longer lifespan than lead-acid batteries.
-
High Discharge Rate: Supports high-load equipment with stable and continuous power output.
-
Lightweight and Compact: Reduces weight by 50% compared to equivalent lead-acid models, simplifying installation and transport.
-
Fast Charging: Supports faster recharge cycles, improving uptime in critical systems.
-
Low Self-Discharge: <3% per month, ensuring readiness during standby or storage.
-
Drop-in Replacement: Standardized dimensions and terminals compatible with most existing enclosures and systems.
Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Stored Energy | 2560Wh |
| Cell Type | LiFePO₄ (Lithium Iron Phosphate) |
| Cell Voltage | 3.2V |
| Charge Voltage | 14.6V max |
| Discharge Cut-off | 10.8V (recommended) |
| PCM | Yes (Smart BMS included) |
| Charge Mode | CC/CV |
| Self-Discharge | ≤ 3% per month |
| Operating Temperature | Charge: 0°C ~ 45°C / Discharge: -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 40°C |
| Humidity Range | RH ≤ 85% |
| Dimensions (L×W×H) | 522 × 240 × 218 mm (20.6”× 9.45”× 8.6”) |
| Weight | Approx. 25Kg (55.1 lbs) |
| Terminal Type | T11 (8mm stud) |
| BCI Group | 8D |
Applications
-
Renewable Energy Storage Systems (solar, wind)
-
Uninterruptible Power Supply (UPS) & Emergency Backup
-
Industrial Automation & Heavy-Duty Machinery
-
AGVs & Electric Material Handling Equipment (e.g., forklifts)
-
Telecom Base Station Power Supply
-
Off-grid Solar & Marine Applications
-
Mobile Power Units & Portable Power Stations
