MPS SERIES, MAXTELA MOBILE POWER STATION LiFePO4 BATTERY TECHNOLOGY, 1120Wh/1000W
MPS-41G1K1
Ideally designd for fulfilling a mobile and limited size device, this is why a portable power station is getting popular. They have an advantage over traditional generators, such as they don't require gasoline or kerosene to run it, this is not only save your cost and time spending on maintain the engine. it makes battery backups much, much safer to use indoors.
Multiple output interfaces are embedded to fully support customers’ needs, and instant protection design to optimize output power without damage. Keeps your handy jobs running without concern about unexpected power outages. Our advanced converting power technology delivers stable voltage and provides more productivity benefits.

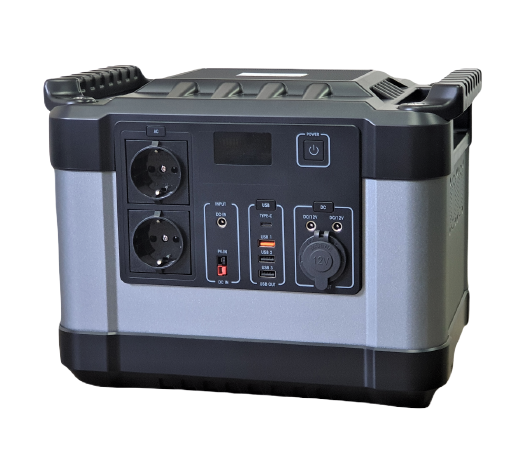

MPS-41G1K1 Portable LiFePO₄ Energy Storage System｜1000W Pure Sine Wave Power Station
The MPS-41G1K1 portable energy storage system is engineered for mobile power demands and outdoor backup. Featuring a high-efficiency LiFePO₄ battery and smart BMS, it delivers 1000W of pure sine wave AC output with 1120Wh capacity. Designed for solar integration (MPPT), fast USB/Type-C charging, and simultaneous charging/discharging, it's perfect for industrial tools, RVs, field work, or disaster response. Its lightweight, rugged build makes it ideal for OEM/ODM integration and distributor partnerships.
Features：
-
MPPT Solar Charging Support: Enhances photovoltaic efficiency through optional MPPT controller.
-
Simultaneous Charging & Discharging: Delivers AC/DC/USB output while charging (optional).
-
LCD Status Display: Monitors battery level, input/output wattage, and fault warnings.
-
Fast Recharging Capability: Supports high current input to reduce charging time.
-
Smart Battery Management System (BMS): Built-in protections against short circuit, overvoltage, overload, and overheating.
-
Pure Sine Wave Output: Provides 1000W stable AC power for sensitive electronics.
-
Multiple Output Interfaces: Includes USB, Type-C, QC 3.0, and DC ports for versatile power delivery.
-
Lightweight & Portable: Only 15.5kg, easy to carry for outdoor and field applications.
PRODUCT SPECIFICATIONS：
|
Model |
MPS-41G1K1 |
||
|
|
Electrical Characteristics |
||
|
Cell Electrolyte |
Lithium Iron Phosphate |
||
|
Nominal Cell Voltage |
3.2V |
||
|
Battery Configuration |
|||
|
Battery Capacity |
1120Wh |
||
|
Battery Management System |
Yes |
||
|
AC Technical Parameters |
|||
|
AC Output Waveform |
Pure Sine Wave |
||
|
Rated AC Output Power |
1000W |
||
|
Peak AC Output Power |
2200W |
||
|
AC Output Voltgae |
220~240V, 50Hz (or 100V~120V, 60Hz) |
||
|
|
DC Technical Parameters |
||
|
QC Output(3.0) |
5V/3A,9V/2A,12V/1.5A |
||
|
DC Output |
12V,10A max. |
||
|
Type-C Output |
60W, 5V/3A, 9V/3A,12V/3A, 15V/3A,20V/3A |
||
|
USB Output |
5V/3.1A max. |
||
|
Power Charger |
25.5V/4.5A |
||
|
Solar PV Input Charge |
Supported, 18V~30V, 120W max (Optional) |
||
|
Protections |
Short circuit protection |
||
|
Mechnical Characteristics |
|||
|
Dimension (L*W*H) |
320*230*280 mm/12.59*9.05*11.02 in |
||
|
Brownbox Size |
410*310*355 mm/16.14*12.2*13.98 in |
||
|
Gross Weight |
16.5kg/36.4lb |
||
|
Net Weight |
15.5kg/33.1lb |
||
|
|
Accessories |
||
|
User's Manual |
Yes |
||
|
CLA Charger x 1 |
YES |
||
|
Unit Package |
Brown Box |
||
|
Certification |
CE, FCC |
||
